Selling point
- Industrial-grade design standards enable long-term stable and reliable operation in harsh environments.
- High configuration, large storage. Quad-core 1GHz CPU frequency, 256FLASH + 128MB DDR3 larger space.
- The serial interface is richer. Support for RS485/RS232/RS422 and RS485 to connect more devices simultaneously.
Characteristic
- Secondary development is convenient. Support ladder diagram and script programming operations.
- Powerful networking function. The network interface/serial port supports one screen multi-machine, one machine multi-screen.
- Detailed structural design. Back dust groove design, valid dust.
Specification parameter
| -Basic parameters- | |||
| Screen size | 7 inches | Hole size | 192*138 mm |
| Panel size | 203*149*32 mm | Display color | 65K |
| Ethernet interface | Yes | ||
| Connection type | Network cable/You can also use the wiring corresponding to Kunlun pass-state screen and various PLCs | ||
| Software system |
【YESMRO configuration software】It is not common with other brand configurations. You can apply for configuration software writing services, please contact customer service for details. |
||
| -Interface type- | |||

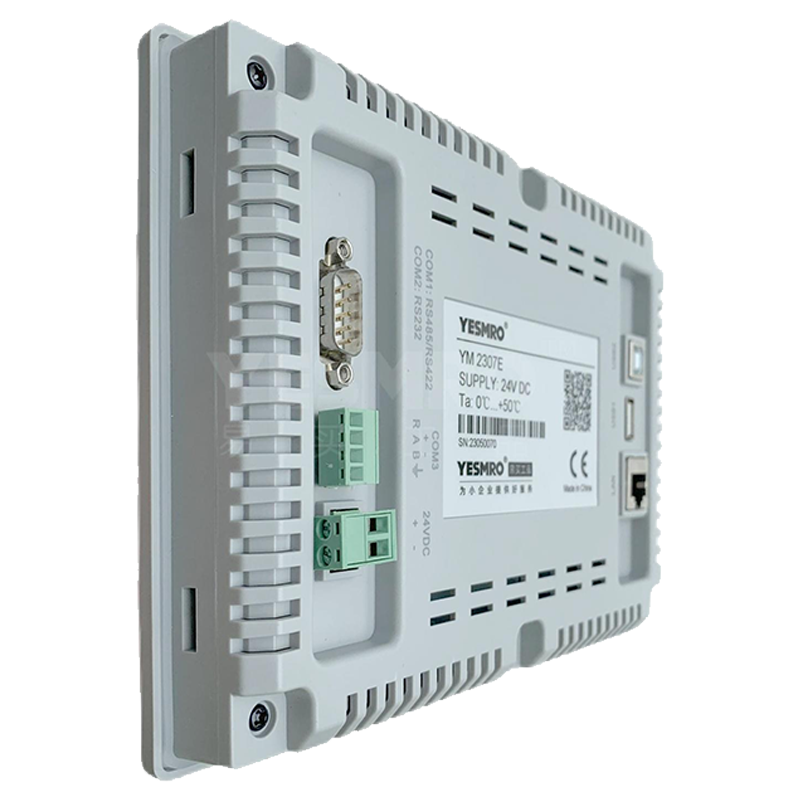

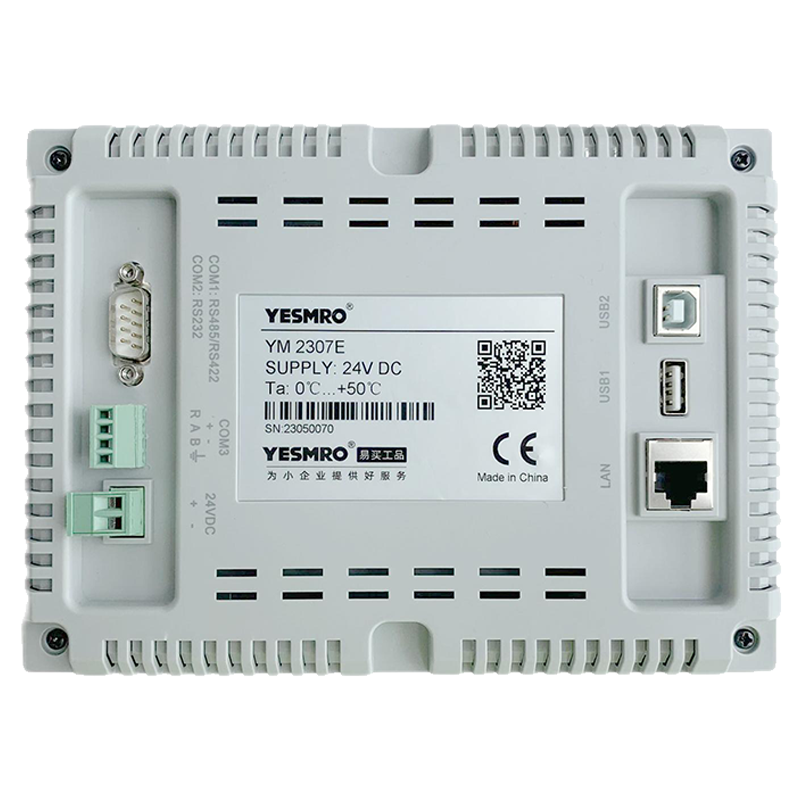

| DB9 serial communication | Connect PLC for communication, support RS485/RS232/RS422 | USB Slave | Connect to PC, upload/download user configuration program |
| RS485 communication terminal | Support independent RS485 communication, pluggable communication terminal with end point resistor, more convenient long distance communication | USB Host | Connect USB flash drive, update configuration and firmware, export historical data |
| Power interface | External 24VDC power supply | Ethernet network interface |
I. Connect router or exchange board, Ethernet integration
II. Connect to PC to upload and download
|
| -Detailed parameters- |
|||||
| Performance specification | Screen display | 7 inches丨TFT | Electrical specification | Rated power | 7.2 W |
| Display color | 65K | Power supply | 24 VDC | ||
| Screen resolution | 800*480 | Input range | 20.4~28.8 VDC | ||
| Screen Craft | LED | Allow power failure | 10 ms | ||
| Display brightness | 300 cd/m2 | Insulation resistance | ＞ 50MΩ@500 VDC | ||
| Liquid crystal lifetime | 30000 H | Pressure resistance | 500 VAC/min | ||
| Touch type | 4-Wire resistive | Structural specification | Shell color | Creamy white | |
| Processor | 1GHz quad-core frequency | Shell material | ABS + PC | ||
| Internal storage |
256MB FLASH + 128MB DDR3
|
External dimensions | 203*149*32 mm | ||
| USB Host |
USB2.0 *1, Type A (USB1),
Support U disk to update firmware, configuration and storage data
|
Hole size | 192*138 mm | ||
| USB Slave | USB2.0 *1, TypeB (USB2), support program upload and download | Weight | 0.75 kg | ||
| Serial Interface |
COM1: RS485/RS422丨COM2: RS232丨COM3: RS485
|
||||
| Ethernet | 10M/100Mbps adaptive | ||||
| DB9 type | male connector | ||||
Matters need attention
- From January 16, 2024, the bottom of the front of the YESMRO HMI is neutral blank, and the LOGO【YESMRO】is not displayed, and the rest of the specifications remain unchanged. If you need use guidance, you can contact the customer service Technical Support Team at 400-881-9500 to apply for Technical Support.
